Thor M50
Fixed Multi-mission Defender
✓ High Integration All-in-One
Integrated design of detection, jamming and deception
✓ Omni-directional Jamming
Transmit jamming signals in 360° omni-directional manner
✓ Automatic Library Adding
Having the ability to expand the drone spectrum feature library, supporting on-site manual or automatic signal collection, and adding to the feature library
Power Plant
Military Unit
Critical Facility
Government
Border
Airport

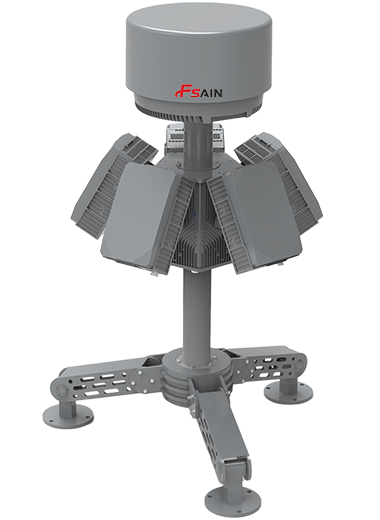

Thor M50
The fixed multi-mission defender integrates detection, jamming and decoy functions. A single device can realize the entire process of drone defense and implement control measures such as drone detection, return, forced landing, and expulsion.

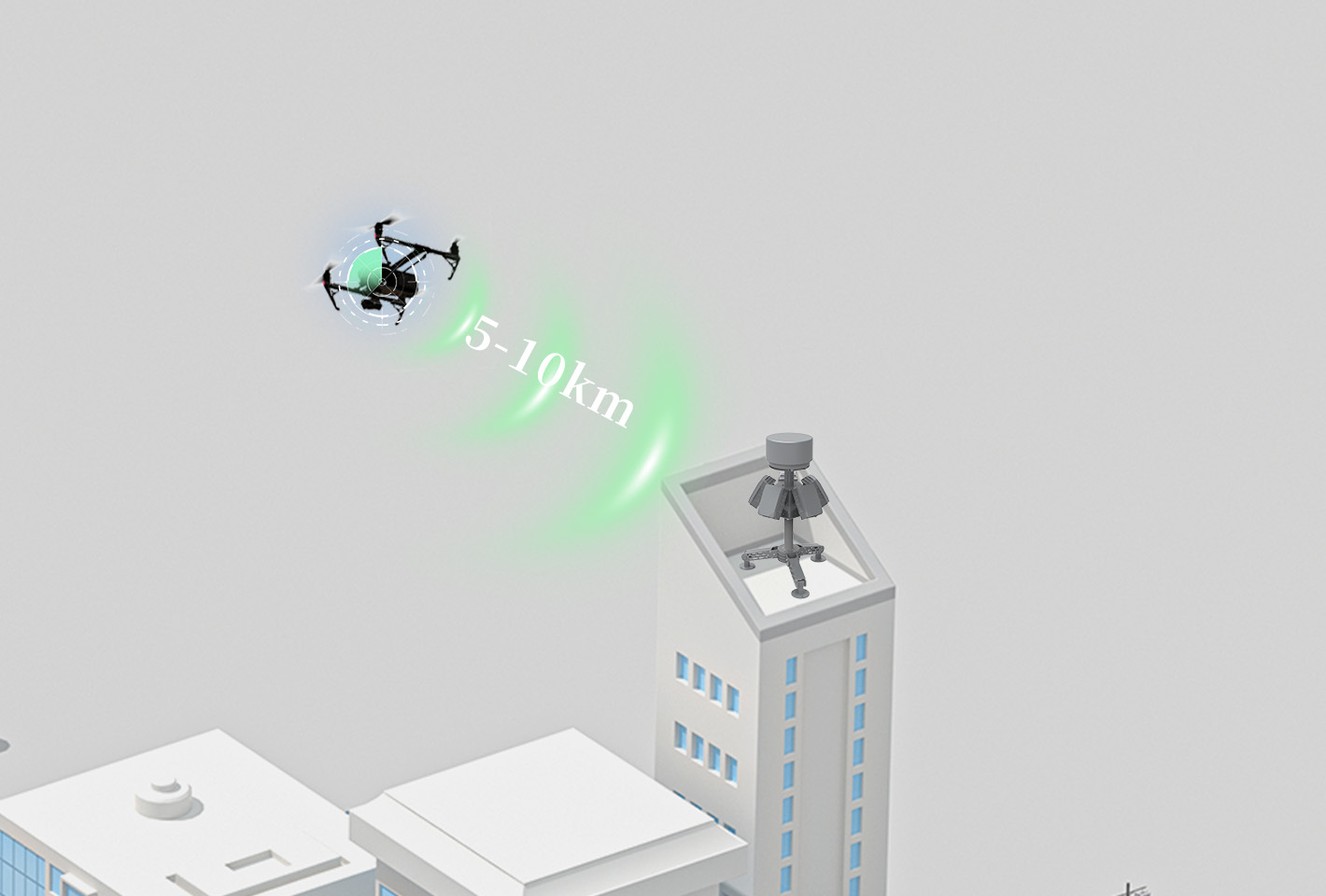

Detection radius with 5-10km and frequency with 20MHz-6000MHz

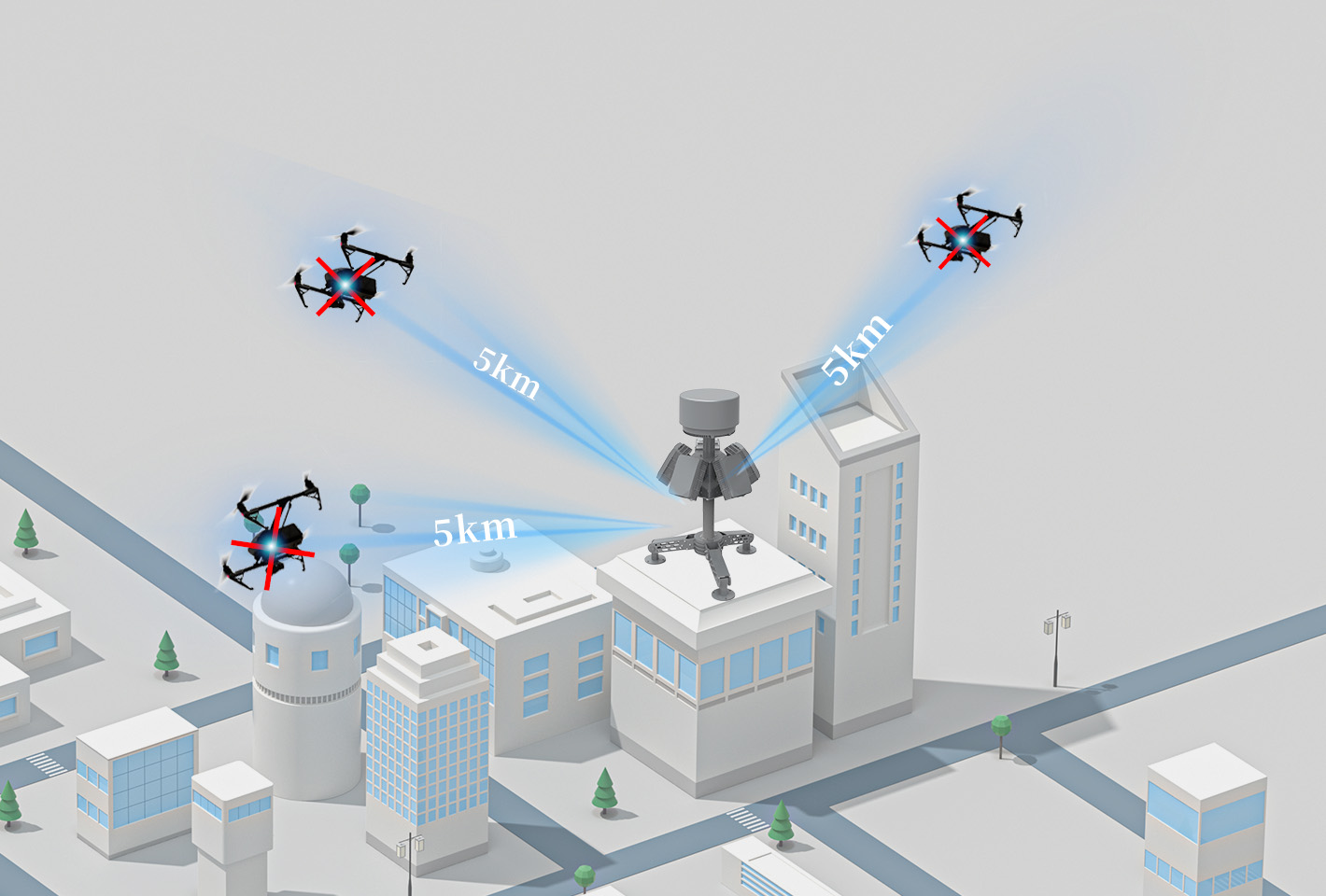

Jamming radius with 5km, and 5 sides jammers make it support omni-directional

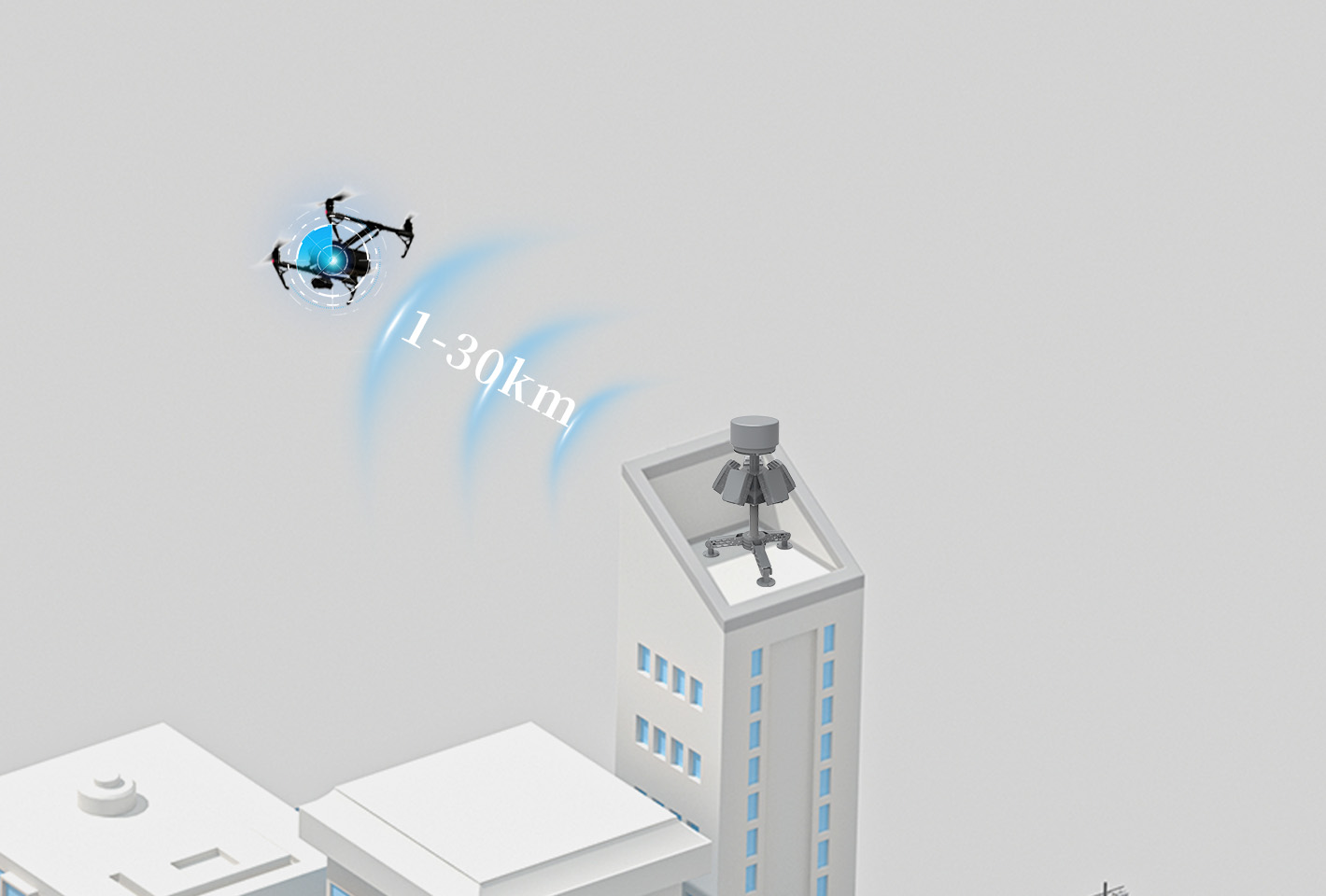

Decoy radius with 1-30km, support 9 navigation bands (GPS L1/L2/L5, GLO L1/L2, BDS B1/B2, GALILEO E1, QZSS L1)
Function
Multiple Algorithms
Spectrum, Drone ID, Remote ID
Detection Frequency
20MHz-6000MHz
Detection Radius
5-10km (vary depending on the environment and model)
Jamming Frequency
433MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz (customizable)
Jamming Radius
5km
Navigation Frequency
GPS L1/L2/L5, GLO L1/L2, BDS B1/B2, GALILEO E1, QZSS L1 (customizable)
Decoy Radius
1-30km (adjustable)
Navigation Jamming Radius
1-3km (adjustable)

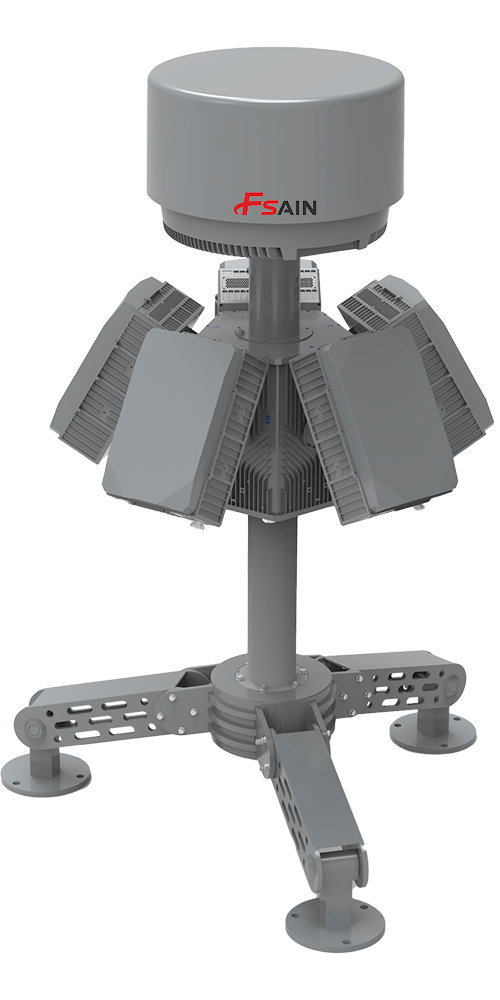

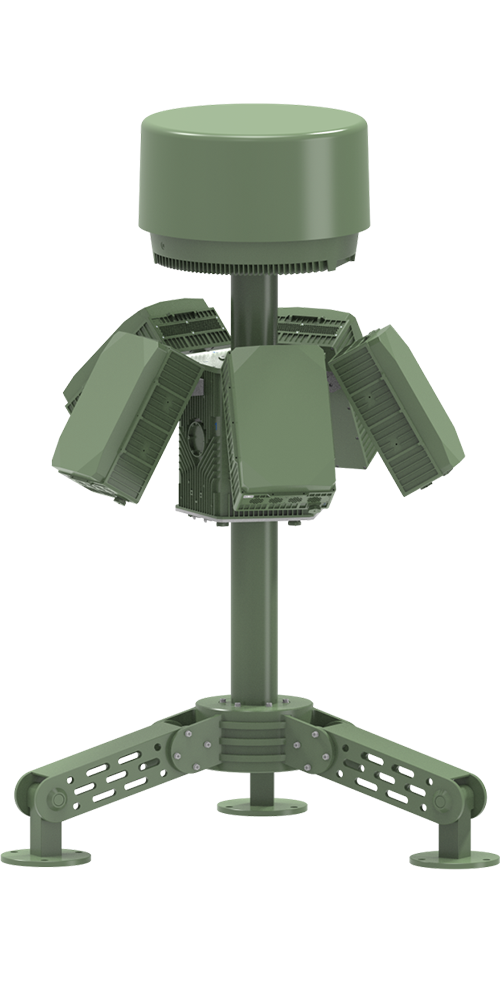

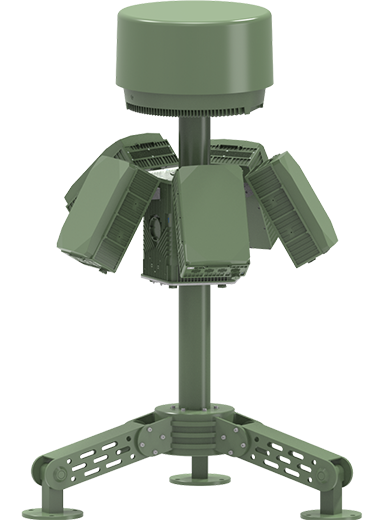

Appearance
Power Consumption
3000w
Protection Level
IP66
